10-16W AC 220-240V single-head adjustable LED spotlight fixture featuring CRI>90 for high-end retail spaces.

AR111-B Architectural Recessed LED Grille Light 10-16W

AR111-B
Quickinfo
CCT: 2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI: CRI>90
Full Beam Angle: 15°/30°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux: 120Lm/W
Protection: IP20
Warranty: 3 years
Contact Now
add to cart

Description

The AR111-B is a premium Architectural Recessed LED Grille Light (10-16W), specifically engineered for high-end commercial indoor applications with direct AC 220-240V line-voltage compatibility. Featuring a compact 50mm low-profile aluminum housing and a standard G53 base, this Architectural Recessed Grille Light ensures excellent heat dissipation and versatile installation. Powered by high-quality Citizen COB LEDs, this Commercial Recessed Grille Light delivers superior color accuracy (CRI>90, Rf>92, Rg>99) and strict SDCM<3 color consistency. With comprehensive smart dimming protocols including Triac, DALI, Bluetooth, and Zigbee, this G53 Adjustable Grille Light offers flexible lighting control for modern interior design projects. Its shallow 50mm depth and 15°/30° beam angle options make this Indoor Architectural Grille Light the perfect choice for focused accent lighting in luxury retail stores, art galleries, and hotel corridors. Available in a sleek silver finish with IP20 protection.

Contact us for project pricing or OEM samples.

Specification

AR111-B Architectural Recessed LED Grille Light 10-16WSize and drawing

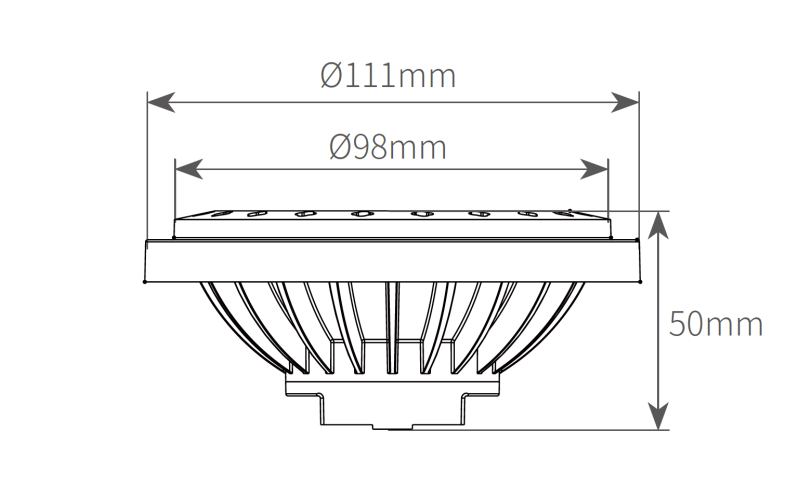

Product codeAR111-BTechnical dimension drawing of AR111-B shallow recessed grille light showing Ø111mm outer diameter and 50mm mounting depth.
Power10W / 12W / 16W
Voltage220-240VAC
CCT2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K
SizeD111xH50mmmm
Color toleranceSDCM<3
Beam angle15°/30°
Power factorPF>0.9
CRICRI90+Dimming control
DimmableDALI, Triac, 0-10V, Bluetooth, ZigbeeMoluce Lighting dimming control options including DALI, Triac, 0-10V, Bluetooth, and Zigbee protocols.
OpticsReflector

Color AccuracyRf≥92
Color SaturationRg=99
Lumen outputLamp lumen 120lm/WDownload
MaterialsDie cast AluminumDownload the technical specification file and photometric data for the AR02-4 architectural spotlight.
InstallationRecessed
ProtectionIP20
FinishSliver
Warranty3 years

Application Scenarios

Widely used in: ground decorative lighting in urban squares, sculptures, garden communities, roads, parks, scenic spots, commercial pedestrian streets, parking lots and other places.
