C9835 Smart Dimming Recessed LED Profile Light 24-48W
C9835
Quickinfo
CCT: 2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI: CRI>90
Full Beam Angle: 110°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux: >100Lm/W
Protection: IP20
Warranty: 3 years
CCT: 2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI: CRI>90
Full Beam Angle: 110°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux: >100Lm/W
Protection: IP20
Warranty: 3 years
Description
The C9835 Smart Dimming Linear LED Channel redefines architectural ambient lighting. Supporting Triac, DALI, 0/1-10V, and wireless smart controls (ZigBee, Bluetooth, PLC), this recessed aluminum profile allows precise scene management. With adjustable CCT from 2700K to 6000K and high luminous efficiency of >100 lm/W, it is the ultimate choice for luxury hotels, wine cellars, and creative LED strip housing projects where color temperature and brightness control are paramount.
Contact us for project pricing or OEM samples.
Specification

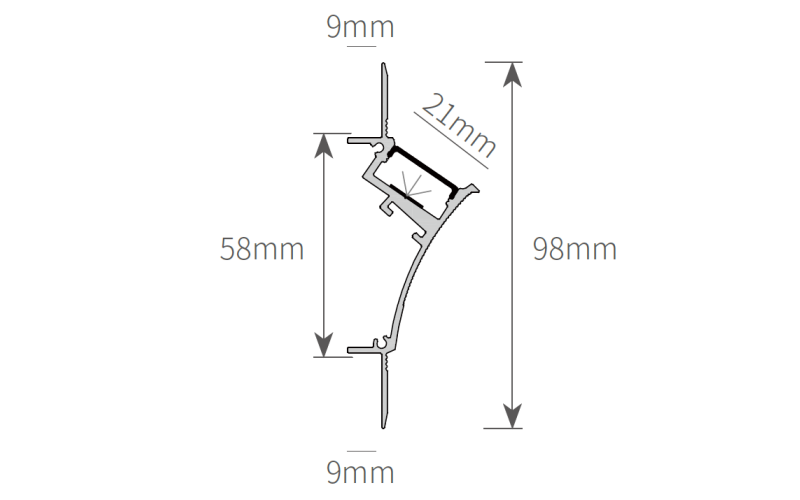

| C9835 Smart Dimming Recessed LED Profile Light 24-48W | Size and drawing | ||||||||||||
| Product code | C9835 |  | |||||||||||
| Power | 24W / 36W / 48W | ||||||||||||
| Voltage | 220-240VAC | ||||||||||||
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K | ||||||||||||
| Length | 1000/1500/2000mm | ||||||||||||
| Color tolerance | SDCM＜3 | ||||||||||||
| Beam angle | 110° | ||||||||||||
| Power factor | PF>0.9 | ||||||||||||
| CRI | CRI90+ | Dimming control | |||||||||||
| Dimmable | DALI, Triac, 0-10V, Bluetooth, Zigbee |  | |||||||||||
| Optics | PC Diffuser | ||||||||||||
| Color Accuracy | Rf≥92 | ||||||||||||
| Color Saturation | Rg=99 | ||||||||||||
| Lumen output | Lamp lumen >100Lm/W | Download | |||||||||||
| Materials | Die cast Aluminum |  | |||||||||||
| Installation | Recessed | ||||||||||||
| Protection | IP20 | ||||||||||||
| Finish | White/Black/Sliver | ||||||||||||
| Warranty | 3 years | ||||||||||||
Application Scenarios
Widely used in high-end commercial interiors such as international schools, corporate lobbies, luxury retail stores, art galleries, hotel reception areas, and exhibition centers.
