D170 Round Adjustable Outdoor LED Landscape Spotight
LS150101
Quickinfo
CCT: 2200K, 2700K, 3000K, 4000K, 5700K, 6500K, RGB 3in1, RGBW 4in1
CRI: CRI>80
Full Beam Angle: 3°-60°, 10*60°, 20*55°
Dimmable: DALI, TRIAC, 1-10V, PWM, DMX512 Dimming
Luminous Flux: 600-3400Lm
Protection: IP65
Warranty: 3 years
CCT: 2200K, 2700K, 3000K, 4000K, 5700K, 6500K, RGB 3in1, RGBW 4in1
CRI: CRI>80
Full Beam Angle: 3°-60°, 10*60°, 20*55°
Dimmable: DALI, TRIAC, 1-10V, PWM, DMX512 Dimming
Luminous Flux: 600-3400Lm
Protection: IP65
Warranty: 3 years
Description
Contact us for project pricing or OEM samples.
Specification

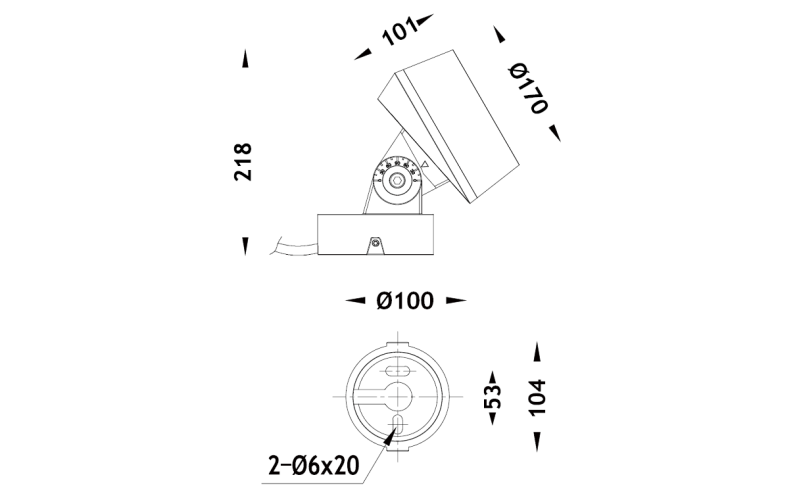

| D170 Round Adjustable Outdoor LED Landscape Spotight | Size and drawing | |||||||||||||
| Product code | LS150101 |  | ||||||||||||
| LED Chip | 6 x 4W | 12 x 3W | 1 x 35W | 12 x 2.5W | 12 x 3.5W | |||||||||
| Work Power | 24W | 36W | 34W | 30W | 42W | |||||||||
| Voltage | 12/24VDC, 220-240VAC | 12/24VDC, 220-240VAC | 12/24VDC, 220-240VAC | 12/24VDC, 220-240VAC | 12/24VDC, 220-240VAC | |||||||||
| CCT | 2200-6500K, R/G/B | RGB 3in1 | RGBW 4in1 | |||||||||||
| Beam angle | 3°/ 8° | 15°/25°/40°/60°/10*60°/20*55° | 18°/ 24°/ 38°/ 60° | 25°/ 40°/ 60° | ||||||||||
| Lumen output | 1340Lm | 2450Lm | 3400Lm | 600Lm | 8400Lm | |||||||||
| Power factor | PF>0.9 | |||||||||||||
| Dimmable | DALI, TRIAC, 1-10V, PWM, DMX | Dimming control | ||||||||||||
| Materials | Die-cast Aluminum |  | ||||||||||||
| Size | D170xL101xH218mm | |||||||||||||
| Cut out | - | |||||||||||||
| LED brand | OSRAM/CREE | |||||||||||||
| CRI | >80 | Download | ||||||||||||
| SDCM | <3 |  | ||||||||||||
| Salt Spray: | >800 Hours | |||||||||||||
| Protection | IP65 | |||||||||||||
| Finish | Black/White/Gery | |||||||||||||
| Warranty | 3 years | |||||||||||||
Application Scenarios
Widely used in: ground decorative lighting in urban squares, sculptures, garden communities, roads, parks, scenic spots, commercial pedestrian streets, parking lots and other places.
