D30 Mini Trimless Pull Out Spotlight 7W
CCT: 2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI: CRI>90/97
Full Beam Angle: 15°/24°/38°/50°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux: 100Lm/W
Protection: IP20
Warranty: 3 years
Description
The POR4507-TR is a premium mini trimless pull out spotlight, meticulously engineered for spaces requiring ultra-compact, minimalistic accent lighting. Featuring a D30mm trimless design that seamlessly blends into the ceiling, this D30mm recessed spotlight creates a virtually invisible installation. Powered by high-performance LEDs, this trimless retractable spotlight delivers exceptional CRI>90/97 while maintaining UGR<11 for optimal visual comfort. Supporting Triac, DALI, Bluetooth, and Zigbee dimming, this mini trimless pull out spotlight offers ultimate design flexibility for jewelry showcases, boutique displays, and high-end residential interiors. Available in white or black finishes.
Contact us for project pricing or OEM samples.
Specification
| D30 Mini Trimless Pull Out Spotlight 7W | Size and drawing | ||||||||||||
| Product code | POR4507TR | ||||||||||||
| Power | 7W | ||||||||||||
| Voltage | 220-240VAC | ||||||||||||
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K | ||||||||||||
| Size | D30xL75xH85mm | ||||||||||||
| Color tolerance | SDCM＜3 | ||||||||||||
| Beam angle | 15°/24°/38°/50° | ||||||||||||
| Power factor | PF>0.9 | ||||||||||||

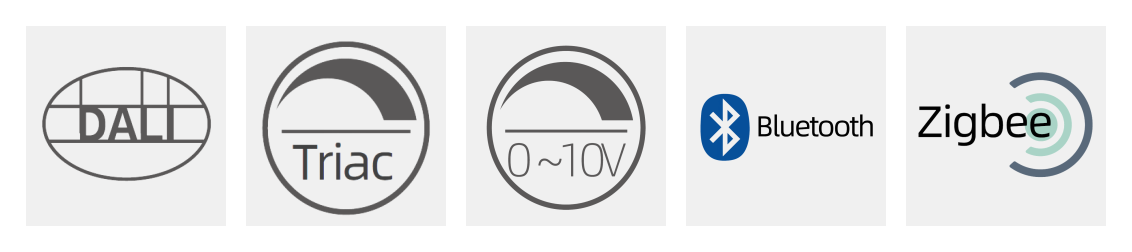

| CRI | CRI90+,CRI97+ | Dimming control | |||||||||||
| Dimmable | DALI, Triac, 0-10V, Bluetooth, Zigbee |  | |||||||||||
| Optics | Reflector | ||||||||||||
| Color Accuracy | Rf≥92 | ||||||||||||
| Color Saturation | Rg=99 | ||||||||||||
| Lumen output | Lamp lumen 100lm/W | Download | |||||||||||
| Materials | Die cast Aluminum |  | |||||||||||
| Installation | Recessed | ||||||||||||
| Protection | IP20 | ||||||||||||
| Finish | White/Black | ||||||||||||
| Warranty | 3 years | ||||||||||||
