HDL5507 Trimmed Circular LED Ceiling Downlight 7W
HDL5507
Quick info
CCT: 2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI: CRI>90
Full Beam Angle: 16°/25°/35°/50°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux: 80Lm/W
Protection: IP20
Warranty: 3 years
CCT: 2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI: CRI>90
Full Beam Angle: 16°/25°/35°/50°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux: 80Lm/W
Protection: IP20
Warranty: 3 years
Description
The HDL5507 Trimmed Circular LED Downlight is expertly designed for quick and secure installation into standard commercial ceiling cutouts. Featuring a sleek white/titanium outer trim flange, this robust aluminum fixture ensures excellent heat dissipation and stable long-term performance. Equipped with high CRI>90 and UGR<19 anti-glare optics, it provides vivid, comfortable, and shadow-free illumination, making it the perfect choice for busy offices, retail showrooms, and hotel corridors.
Contact us for project pricing or OEM samples.
Specification

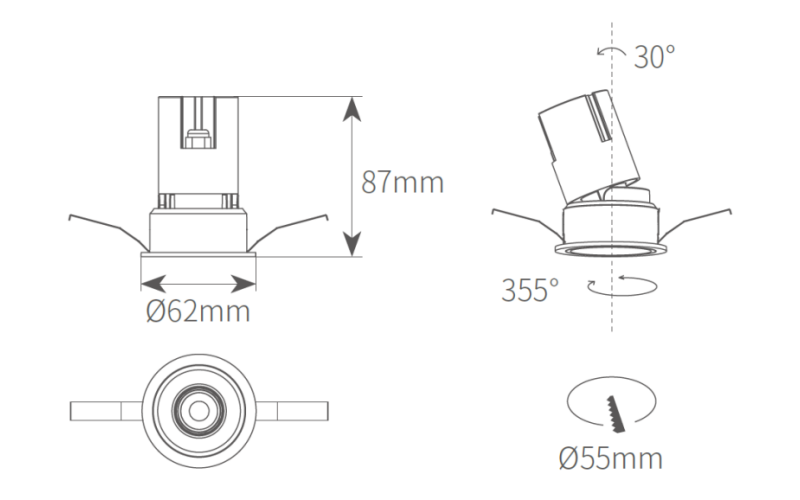

| HDL5507 Trimmed Circular LED Ceiling Downlight 7W | Size and drawing | ||||||||||||
| Product code | HDL5507 |  | |||||||||||
| Power | 7W | ||||||||||||
| Voltage | 220-240VAC | ||||||||||||
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K | ||||||||||||
| Cut out | D55 | ||||||||||||
| Size | D62xH87mm | ||||||||||||
| Color tolerance | SDCM＜3 | ||||||||||||
| Beam angle | 16°/25°/35°/50° | Accessories | |||||||||||
| CRI | CRI90+, CRI97+ |  | |||||||||||
| Dimmable | DALI, Triac, 0-10V, Bluetooth, Zigbee | ||||||||||||
| Optics | Reflector | ||||||||||||
| Color Accuracy | Rf≥92 | ||||||||||||
| Color Saturation | Rg=99 | ||||||||||||
| Lumen output | Lamp lumen 80lm/W | ||||||||||||
| Materials | Die cast Aluminum | ||||||||||||
| Installation | Recessed | Download | |||||||||||
| Protection | IP20 |  | |||||||||||
| Finish Color | Dazzling black, Deep space black, Moonlight Silver, Ivory white | ||||||||||||
| Warranty | 3 years | ||||||||||||
Application Scenarios
Widely used in high-end commercial interiors such as international schools, corporate lobbies, luxury retail stores, art galleries, hotel reception areas, and exhibition centers.
