D45 Low-Voltage Landscape LED Directional Spotlight
LS3045
Quickinfo
CCT: 2200K, 2700K, 3000K, 4000K, 5700K, 6000K, R/G/B, RGB 3in1, RGBW 4in1
CRI: CRI>80
Full Beam Angle: 5° - 60°, 10*45°, 20*65°
Dimmable: DALI, TRIAC, 1-10V, PWM, DMX512 Dimming
Luminous Flux: 60 - 465Lm
Protection: IP65
Warranty: 3 years
CCT: 2200K, 2700K, 3000K, 4000K, 5700K, 6000K, R/G/B, RGB 3in1, RGBW 4in1
CRI: CRI>80
Full Beam Angle: 5° - 60°, 10*45°, 20*65°
Dimmable: DALI, TRIAC, 1-10V, PWM, DMX512 Dimming
Luminous Flux: 60 - 465Lm
Protection: IP65
Warranty: 3 years
Description
Contact us for project pricing or OEM samples.
Specification
| D45 Low-Voltage Landscape LED Directional Spotlight | Size and drawing | ||||||||||||
| Product code | LS3045 |  | |||||||||||
| LED Chip | 1 x 5W | 1 x 6W | 1 x 3W | 1 x 4W | |||||||||
| Work Power | 4.5W | 6.2W | 3W | 4W | |||||||||
| Voltage | 12/24VDC, 220-240VAC | 12/24VDC, 220-240VAC | 12/24VDC | 12/24VDC | |||||||||
| CCT | 2200-6000K, R/G/B | 2200-6000K, R/G/B | RGB 3in1 | RGB 4in1 | |||||||||
| Beam angle | 5°/10°/30°/40°/60°/90°/10*45°/20*65° | 15°/24°/36°/55° | 20°/30°/40°/60° | 20°/30°/40°/60° | |||||||||
| Lumen output | 380Lm | 465Lm | 60Lm | 80Lm | |||||||||
| Power factor | PF>0.9 | ||||||||||||
| Dimmable | DALI, TRIAC, 1-10V, PWM, DMX | Dimming control | |||||||||||
| Materials | Die-cast Aluminum |  | |||||||||||
| Size | D45xL90xH90mm | ||||||||||||
| Cut out | - | ||||||||||||
| LED brand | OSRAM/CREE | ||||||||||||
| CRI | >80 | Download | |||||||||||
| SDCM | <3 |  | |||||||||||
| Salt Spray: | >800 Hours | ||||||||||||
| Protection | IP67 | ||||||||||||
| Finish | Black/White/Sliver/Gery | ||||||||||||
| Warranty | 3 years | ||||||||||||
Application Scenarios

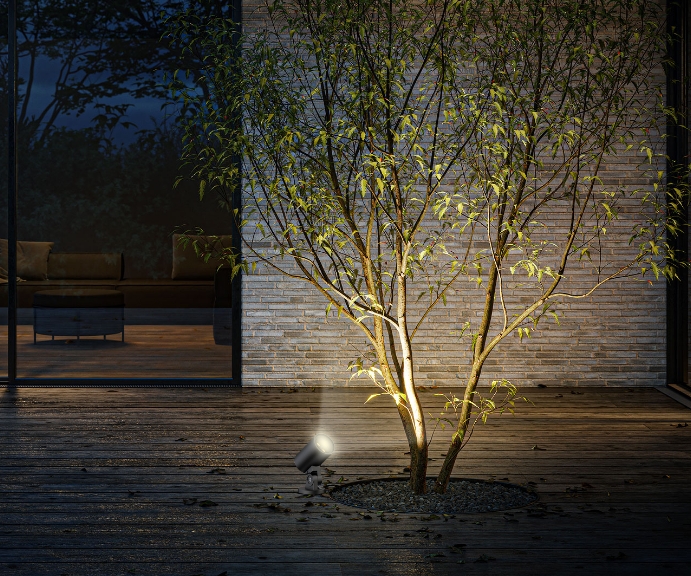

Widely used in: ground decorative lighting in urban squares, sculptures, garden communities, roads, parks, scenic spots, commercial pedestrian streets, parking lots and other places.
