BDL9530 20W Modular Waterproof High CRI Downlight

BDL9530
Contact Now
add to cart

Description

The Moluce BDL9530 is a 20W modular recessed downlight featuring an elegant 95mm cutout. Offering interchangeable 15/24/36/60 degree optical modules, this downlight provides seamless flexibility for accent lighting. The waterproof sealed housing allows for safe installation in high-humidity residential or premium retail locations. The modular architecture supports various optional accessories, including honeycomb louvers and multiple anti-glare cover colors. Achieving Ra>90/97, it ensures superior color fidelity for luxury merchandise, making it an ideal choice for high-end applications.

Contact us for project pricing or OEM samples.

Specification

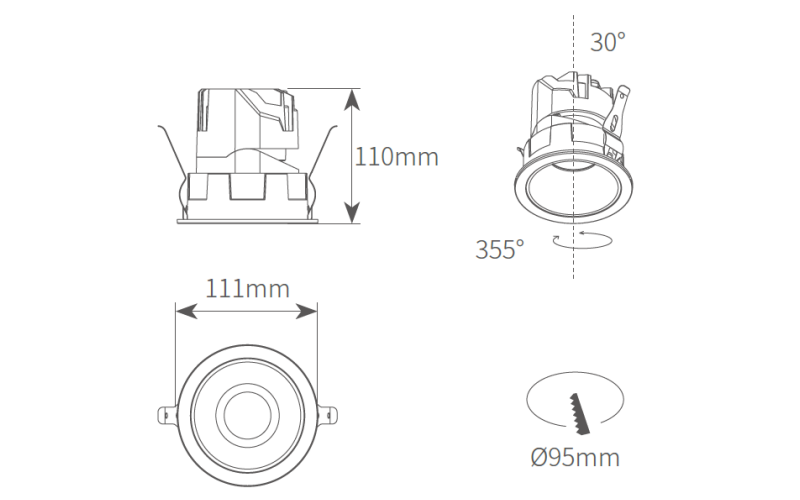

BDL9530 20W Modular Waterproof High CRI DownlightSize and drawing
Product codeBDL9530
Power30W
Voltage220-240VAC
CCT2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K
Cut outD95mm
Size111*110mm
Color toleranceSDCM<3
Beam angle15°/24°/38°/60°
CRICRI90+, CRI97+Accessories
DimmableDALI, Triac, 0-10V, Bluetooth, Zigbee
OpticsReflector/Lens

Color AccuracyRf≥92
Color SaturationRg=99
Lumen outputLamp lumen 100lm/W
MaterialsDie cast Aluminum
InstallationRecessedDownload
ProtectionIP65Download the technical specification file and photometric data for the AR02-4 architectural spotlight.
FinishWhite/Black
Warranty5 years

Application Scenarios

Widely used in high-end commercial interiors such as international schools, corporate lobbies, luxury retail stores, art galleries, hotel reception areas, and exhibition centers.
