2010R D10 mini RGB in-ground well light 0.3W stainless steel
2010R D10 mini inground well light dimensions 9mm cutout drawing
mini LED recessed in-ground lighting path edge deck accent
2010R D10 mini RGB in-ground well light 0.3W stainless steel

D10 RGB Color-Changing In-Ground Round Mini Well Light 0.5W

2010R
Quickinfo
CCT: 2700K, 3000K, 4000K, 5000K, 6000K, RGB
CRI: CRI>80
Full Beam Angle: 120°
Dimmable: DALI, TRIAC, 1-10V, PWM, DMX Dimming
Luminous Flux: Up to 11 Lm
Protection: IP67, IK04
Warranty: 3 years
Contact Now
add to cart

Mini In-Ground Well Light - 2010R

Description

The 2010R is Moluce's most compact recessed in-ground lighting solution — a D10 miniature well light designed for tight installation spacing where standard fixtures won't fit. At 0.3W with a 120° beam, it delivers flush, glare-free illumination along path edges, deck perimeters, step risers, and courtyard paving joints. RGB color output with 12VDC input keeps it compatible with existing low-voltage landscape lighting well lights systems without additional drivers.

Where projects require directed uplighting on trees or facades, pair with our adjustable in-ground light range for beam-angle control. For linear wash applications along walls or planter edges, the recessed linear uplight covers continuous runs in a single supply.

316L stainless steel housing and IP67 waterproofing make the 2010R suitable for coastal promenades, pool surrounds, and high-footfall plaza paving.

 Contact us for project pricing or OEM samples.

Specification

D10 RGB Color-Changing In-Ground Round Mini Well Light 0.5WSize and drawing
Product code2010R2010R D10 D10 in-ground lighting dimensions 9mm cutout drawing
LED Chip1 x 0.5W

Wattage0.5 Watts
VoltageDC12V
CCT2700K, 3000K, 4000K, 5000K, 6000K, R/G/B
Beam angle120°
Lumen output11 Lm
Power factorPF>0.9
DimmableDALI, TRIAC, 1-10V, PWM, DMX
MaterialsStainless Steel / AluminumDimming control
SizeD10xH40mmDALI DMX 1-10V PWM dimming control wiring diagram – mini landscape well light by Moluce Lighting
Cut outD9mm
LED brandCREE/OSRAM COB
CRI>80
SDCM<3Download
Salt Spray:>800 HoursD9 2030R mini LED well light datasheet by Moluce Lighting
ProtectionIP67, IK04 (Static load resistance 500KG)
FinishBrushed Stainless Steel
Warranty3 years

Application Scenarios

Widely used in: ground decorative lighting in urban squares, sculptures, garden communities, roads, parks, scenic spots, commercial pedestrian streets, parking lots and other places.

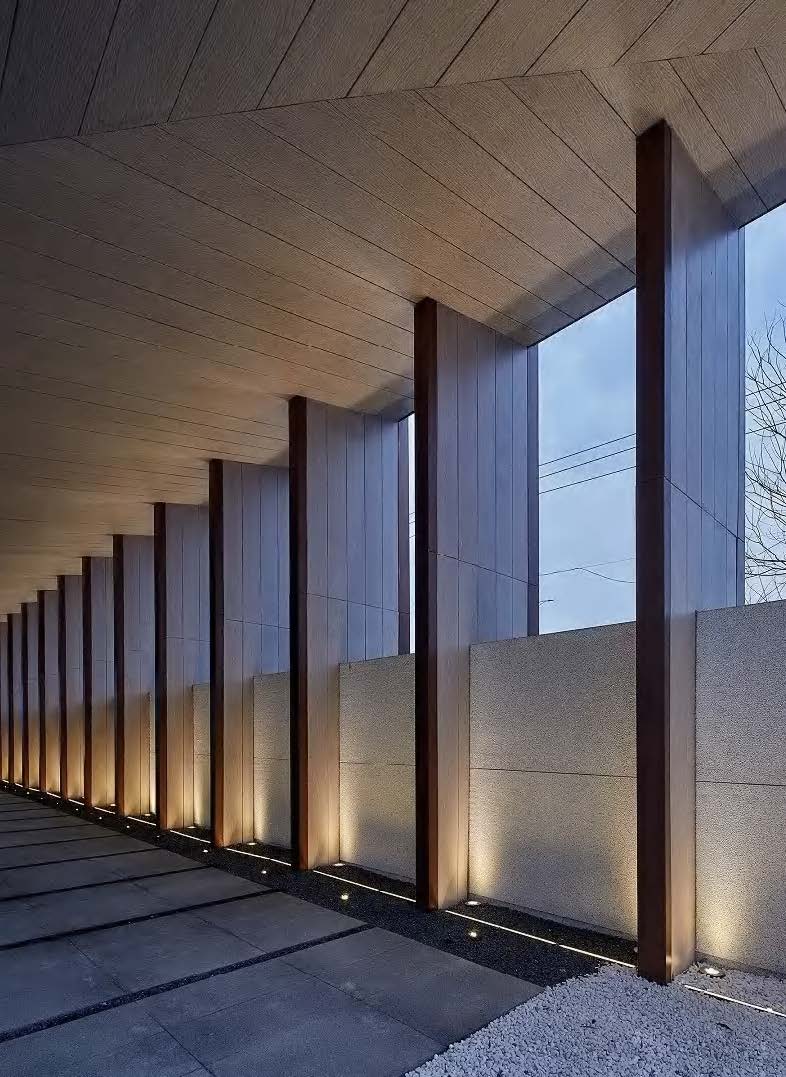

mini LED well light path application imagemini LED well light lightingeffect
