D180 Adjustable LED In-Ground Landscape Light

IG180162B
Quickinfo
CCT: 2200K, 2700K, 3000K, 4000K, 5000K, 6000K, RGB
CRI: CRI>80
Full Beam Angle: 18° ,22° ,30° ,60°
Dimmable: DALI, TRIAC, 1-10V, PWM, DMX DIM
Luminous Flux: Up to 1438 Lm
Protection: IP67, IK10
Warranty: 3 years
Contact Now
add to cart

Adjustable In-Ground Light-IG180162B

Description

Moluce Lighting proudly presents the IG180162B — an IP67 adjustable in-ground light with a rotatable head design. Unlike fixed recessed in-ground lights, the fixture rotates within its existing housing to switch between uplight and wall-wash beam directions. No new trenching or cut-out is needed, making it a practical drop-in upgrade for retrofit projects.

Thisadjustable low voltage well light accepts 12VDC, 24VDC, and 220–240VAC, fitting both low-voltage landscape systems and standard mains installations. At 20W and 1438lm, beam angle adjusts from 18° to 60°: narrow for tall tree uplighting, wide for extended facade grazing, or mid-range for path and plaza coverage. RGBW color-changing mode enables static warm tones, dynamic color sequences, and hospitality scene programming — functions also available across our LED landscape spotlight.

The 316# marine-grade stainless steel cover and die-cast aluminium housing deliver IP67 waterproof and IK10 impact ratings — built for driveways, plazas, garden paths, and coastal promenades.

 Contact us for project pricing or OEM samples.

Specification

IG Series Adjustable LED In-Ground Landscape Light 20WSize and drawing

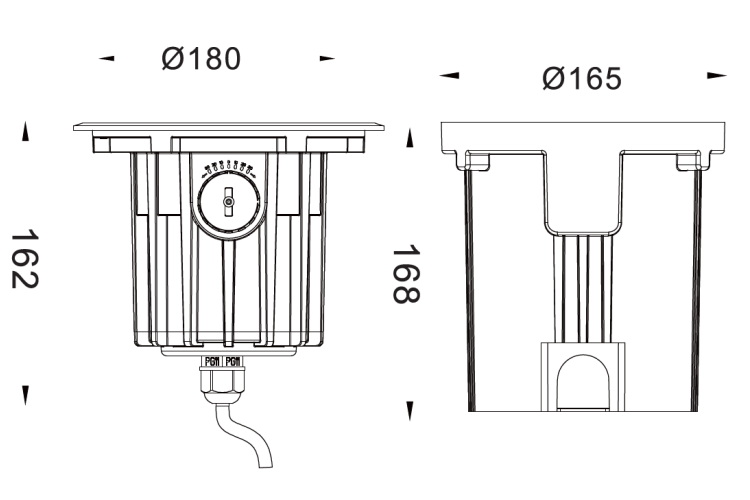

Product codeIG180162B-12VDCIG180162B-24VDCIG180162B-220-240VACIG180162B D180 adjustable inground light dimensions drawing
LED Chip1 x 20W

Wattage20 Watts
Voltage12VDC24VDC220-240VAC
CCT2700K, 3000K, 4000K, 5000K, 6500K, RGB + W(2700K-6000K)
Beam angle18°/22°/30°/60°
Lumen output465Lm
Power factorPF>0.9
DimmableDALI, TRIAC, 1-10V, PWM, DMX
Materials12# Die-cast Aluminum Housing + 316# SUS Cover + Tempered glass
SizeD180xH162mm
Dimming control
Cut outD165mmDALI DMX 1-10V PWM dimming control wiring diagram – IG130133 adjustable inground LED light by Moluce Lighting
LED brandCREE COB
CRICRI80+
SDCM<3
Salt Spray:>800 HoursDownload
ProtectionIP67, IK10 (Static load resistance 5000KG)D130 IG130133 adjustable in-ground LED light datasheet by Moluce Lighting
FinishBrushed Stainless Steel
Warranty3 years

Application Scenarios

Widely used in: ground decorative lighting in urban squares, sculptures, garden communities, roads, parks, scenic spots, commercial pedestrian streets, parking lots and other places.
IP67 20W adjustable inground light commercial facade tree uplighting application
