DLC08-A 8inch Architectural Recessed Downlight 45 Degree 22-100W

DLC08-A

Quick info
CCT: 2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI: CRI>90
Full Beam Angle: 45°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux: 110Lm/W
Protection: IP20
Warranty: 3 years

Contact Now

add to cart

Description

The Moluce DLC08-A series is a 22W-100W architectural recessed downlight offering a precise 45° fixed beam angle. Engineered with CRI>90, UGR<17, and a high >110lm/W efficacy, this downlight ensures superior visual comfort and true color rendering. The DLC08-A downlight is specifically designed for high-end hotels, retail stores, offices, museums, galleries, villas, and residential applications, providing reliable lighting solutions for complex building projects.

Contact us for project pricing or OEM samples.

Specification

DLC08-A 8inch Architectural Recessed Downlight 45 Degree 22-100W

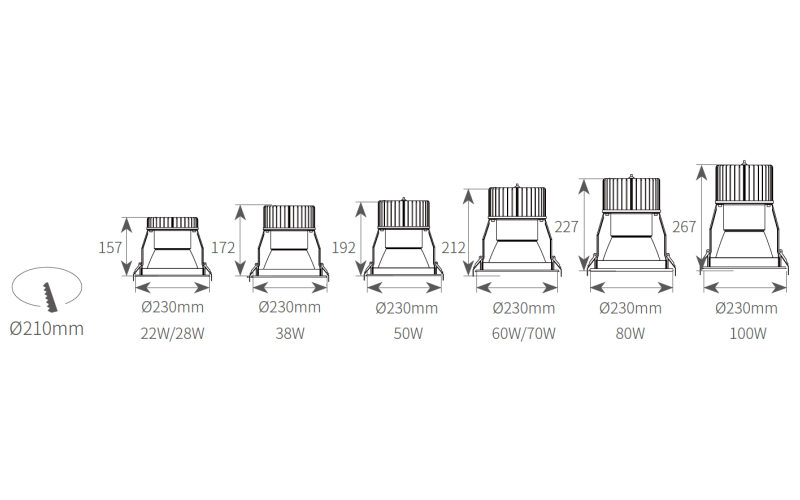

Size and drawing

Product code

DLC08-A

Power

22W/28W/38W/50W/60W/70W/80W/100W

Voltage

100-240VAC, 220-240VAC

CCT

2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K

Cut out

Ø210mm

Size

D230mm

Color tolerance

SDCM＜3

Beam angle

45°

CRI

CRI90+

Dimming control

Dimmable

DALI, Triac, 0-10V, Bluetooth, Zigbee

Moluce Lighting dimming control options including DALI, Triac, 0-10V, Bluetooth, and Zigbee protocols.

Optics

Reflector

Color Accuracy

Rf≥92

Color Saturation

Rg=99

Lumen output

Lamp lumen 110lm/W

Download

Materials

Die cast Aluminum

Download the technical specification file and photometric data for the AR02-4 architectural spotlight.

Installation

Recessed

Protection

IP20

Finish

White/Black

Warranty

3 years

Application Scenarios

Widely used in high-end commercial interiors such as international schools, corporate lobbies, luxury retail stores, art galleries, hotel reception areas, and exhibition centers.
