DLE Series Deep Anti-glare Architectural Downlight 10-36W

DLE
Quick info
CCT: 2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI: CRI>90
Full Beam Angle: 50°/60°/75°/80°/85°/95°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux: 120Lm/W
Protection: IP20
Warranty: 3 years
Contact Now
add to cart

Description

The Moluce DLE Series is a curated collection of 6 premium recessed downlights ranging from 10W to 36W, meticulously engineered for luxury hotel suites, art galleries, and high-end residential spaces. Featuring a refined deep anti-glare optical design, it delivers exceptional visual comfort while eliminating unwanted reflections. Equipped with versatile selectable 15, 24, 38, and 60-degree beam angles, it easily adapts from precise artwork spotlighting to broad ambient washing. Boasting an outstanding CRI>90, Rf≥92, and a 16KHz flicker-free driver, this series ensures museum-grade color accuracy and zero visual fatigue. Supporting a comprehensive suite of smart protocols including DALI, Triac, ZigBee, and Bluetooth, it integrates flawlessly into sophisticated lighting automation systems, elevating the luxurious atmosphere of high-end commercial and hospitality interiors.

Key features

Ultra-Deep Anti-Glare Design for Visual Comfort: The DLE Series features a specially engineered deep recessed optical system that effectively minimizes direct glare, providing a soft, comfortable visual experience ideal for long-duration viewing in art galleries, luxury hotels, and fine dining restaurants.

Museum-Grade CRI>90 and Premium Color Accuracy: Achieving an outstanding CRI>90, Rf≥92, and Rg≥99, this downlight series faithfully reproduces the true colors of premium art, fabrics, and interior materials, meeting the strict demands of high-end cultural and hospitality spaces.

10W to 36W Flexible Power and Precision Optics: Covering six specific wattages from 10W up to 36W, this series provides exceptional flexibility for varying ceiling heights. The 15-degree and 60-degree adjustable optical lenses allow precise matching of accent or wash lighting needs.

Comprehensive Smart Automation Integration: Fully supporting DALI, 0-10V, Triac, ZigBee, and Bluetooth protocols, the DLE Series connects effortlessly into centralized building management systems, enabling precise scene creations, smooth dimming transitions, and effortless mood control for sophisticated architectural environments.

Contact us for project pricing or OEM samples.

Specification

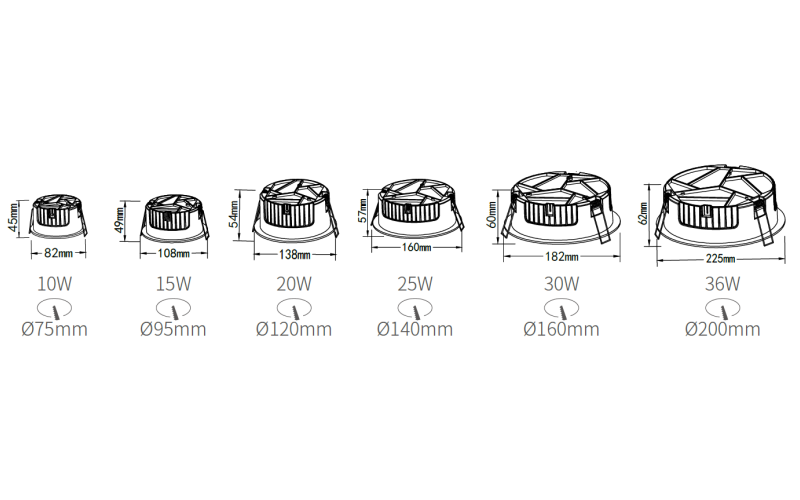

DLE Series Recessed LED Downlight System 10-36W Size and drawing
Product codeDLE07510DLE09515DLE12020DLE14025DLE16030DLE20036
Power10W15W20W25W30W36W
SizeD82*H45mmD108*H49mmD138*H54mmD160*H57mmD182*H60mmD225*H62mm
Cut outØ75mmØ95mmØ120mmØ140mmØ160mmØ200mm
Beam angle50°/60°60°/75°60°/80°60°/80°60°/85°60°/95°
Voltage220-240VAC
Lumen outputLamp lumen 120Lm/W
CCT2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K
DimmableON/OFF, DALI, Triac, 0-10V, Bluetooth, ZigbeeDimming control
OpticsReflector / LensMoluce Lighting dimming control options including DALI, Triac, 0-10V, Bluetooth, and Zigbee protocols.
LED brandCREE / OSRAM
CRICRI90+
Color SaturationRg=99Download
SDCM<3Download the technical specification file and photometric data for the AR02-4 architectural spotlight.
MaterialsDie cast Aluminum
InstallationRecessed
ProtectionIP20
FinishWhite / Black (Customizable)
Warranty3 years

Application Scenarios

Widely used in high-end commercial interiors such as international schools, corporate lobbies, luxury retail stores, art galleries, hotel reception areas, and exhibition centers.
