DLC10-B 10inch UGR<17 Architectural Downlight 22-100W

DLC10-B
Quick info
CCT: 2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI: CRI>90
Full Beam Angle: 25°/32°/40°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux: 100Lm/W
Protection: IP20
Warranty: 3 years
Contact Now
add to cart

Description

The Moluce DLC10-B Series is a flagship architectural downlight family featuring eight power variants from 22W to 100W. Designed for high-end retail and gallery spaces, it features an outstanding UGR<17 anti-glare optical system for superior visual comfort. Offering selectable 23, 32, and 40-degree precision beam angles, it allows designers to create exacting focused accents or broad ambient washes. Boasting a high CRI>90 and an impressive luminous efficacy of over 100lm/W, this series faithfully reproduces colors while maintaining high energy efficiency. Fully supporting DALI, Triac, 0-10V, ZigBee, and Bluetooth protocols, the DLC10-B Series integrates effortlessly into advanced building automation systems, elevating the sophisticated aesthetic of luxury showrooms and museum installations.

Contact us for project pricing or OEM samples.

Specification

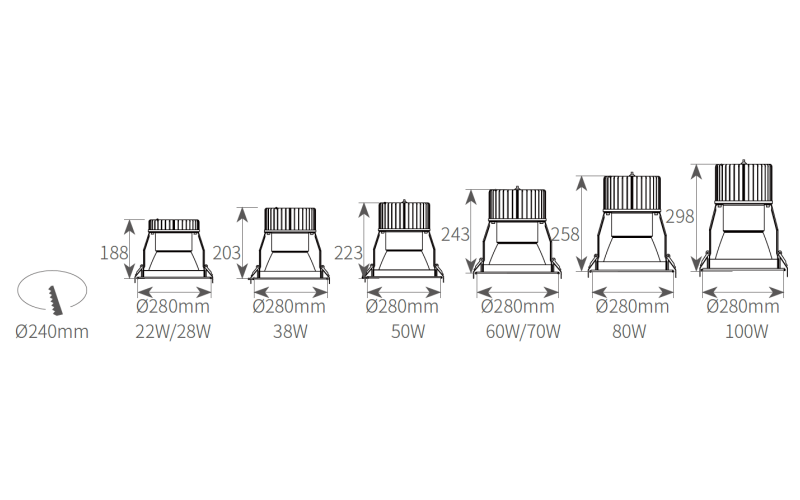

DLC10-B 10inch UGR<17 Architectural Downlight 22-100WSize and drawing
Product codeDLC10-B
Power22W/28W/38W/50W/60W/70W/80W/100W
Voltage100-240VAC, 220-240VAC
CCT2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K
Cut outØ240mm
SizeD280mm
Color toleranceSDCM<3
Beam angle25°/32°/40°
CRICRI90+Dimming control
DimmableDALI, Triac, 0-10V, Bluetooth, ZigbeeMoluce Lighting dimming control options including DALI, Triac, 0-10V, Bluetooth, and Zigbee protocols.
OpticsReflector

Color AccuracyRf≥92
Color SaturationRg=99
Lumen outputLamp lumen 100lm/WDownload
MaterialsDie cast AluminumDownload the technical specification file and photometric data for the AR02-4 architectural spotlight.
InstallationRecessed
ProtectionIP20
FinishWhite/Black
Warranty3 years

Application Scenarios

Widely used in high-end commercial interiors such as international schools, corporate lobbies, luxury retail stores, art galleries, hotel reception areas, and exhibition centers.
