SSM-D Surface Mounted/Pendant Magnetic Track Rail 24V/48V

SSM-D

Quick info
Input Voltage: DC24V/DC48V
Installation: Surface mounted/Pendant
Materials: Die cast Aluminum
size: L500mm/1000mm/1500mm/2000mm/3000mm*W31*H54mm (Customizable)
Warranty: 3 years

Contact Now

add to cart

Description

The SSM-D 24V/48V surface-mounted magnetic track is a compact 54x31mm aluminum rail supporting a 768W maximum power capacity. Designed for projects where ceiling recessing is unfeasible, this industrial-grade profile mounts directly onto concrete slabs or drywall ceilings via secure surface screws. It provides reliable mechanical stability and heat dissipation for all V4 magnetic modules. Available in standard 1000-2000mm lengths, it solves the logistical pain points of complex civil demolition in renovation projects by allowing non-destructive, rapid installation. Paired with the complete STC3001-3005 series of L-shaped, T-shaped, and cross connectors, this track enables the formation of seamless interconnected grids. It is perfectly suited for modern open-plan offices and retail store rollouts, offering commercial lighting contractors a highly efficient, OEM-ready modular backbone.

Key Feature

Suspended Pendant Installation for"Floating"Aesthetics: The SSP-D is engineered to be suspended via slim, high-tensile steel cables, transforming a standard technical track into a striking architectural"floating"focal point. It perfectly bypasses challenging raw ceiling issues (such as uneven slabs) and adds a sophisticated design accent to luxury villa dining rooms and high-end hotel lobby spaces.

Premium Brushed Copper Finish for High-End Hospitality: Available in sand white, sand black, and a premium brushed copper finish, this aluminum rail features an anti-oxidation coating to maintain its original luster. Specifically designed for high-traffic luxury boutique environments, the brushed copper finish withstands daily wear and ensures a consistent, upscale architectural aesthetic that aligns with strict hotel design standards.

Solderless Magnetic Quick-Connect Installation: Equipped with a precision 22.8mm conductive magnetic slot, any compatible magnetic module achieves mechanical and electrical connection in under 1 second without the need for an electrician to strip or solder wires. This drastically reduces field labor time and human error, delivering exceptional efficiency for bulk procurement and fast-paced commercial project rollouts.

Contact us for project pricing or OEM samples.

Specification

SSM-D Surface Mounted/Pendant Magnetic Track Rail 24V/48V

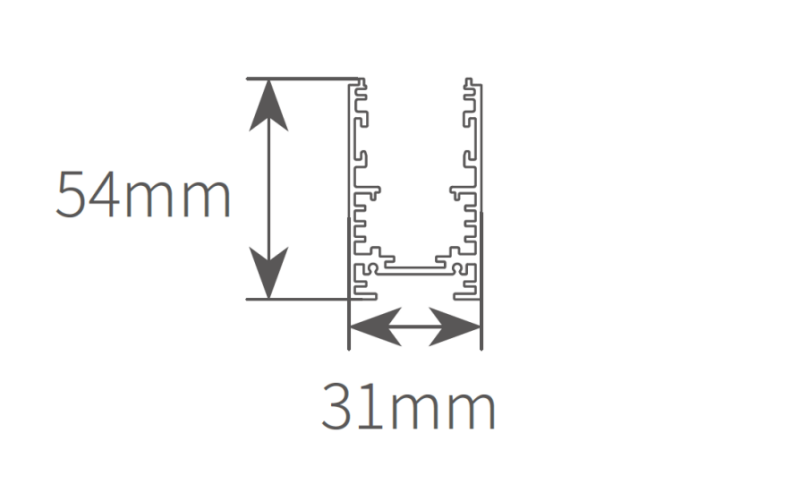

Size and drawing

Product code

SSM-D

Input Voltage

DC24V, DC48V

Size

L500mm/1000mm/1500mm/2000mm/3000mm*W31*H54mm (Customizable)

Materials

Die cast Aluminum

Finish

Black/White/Brushed copper (Customizable)

Installation

Surface Mounted/Pendant

Warranty

3 years

Application Scenarios

Widely used in high-end commercial interiors such as international schools, corporate lobbies, luxury retail stores, art galleries, hotel reception areas, and exhibition centers.
