Concealed Magnetic Track Light: Selection, Installation and Cost

What Is a Concealed Magnetic Track Light and How Does It Work

A concealed magnetic track light — also called a recessed magnetic track or trim/trimless magnetic track system — is a low-voltage DC48V lighting rail that sits flush inside the ceiling plane. Unlike standard surface-mounted or suspended track systems, the profile disappears into the plasterwork. The only visible elements are the LED modules themselves, held in place by magnetic force against the energised copper conductors inside the track.

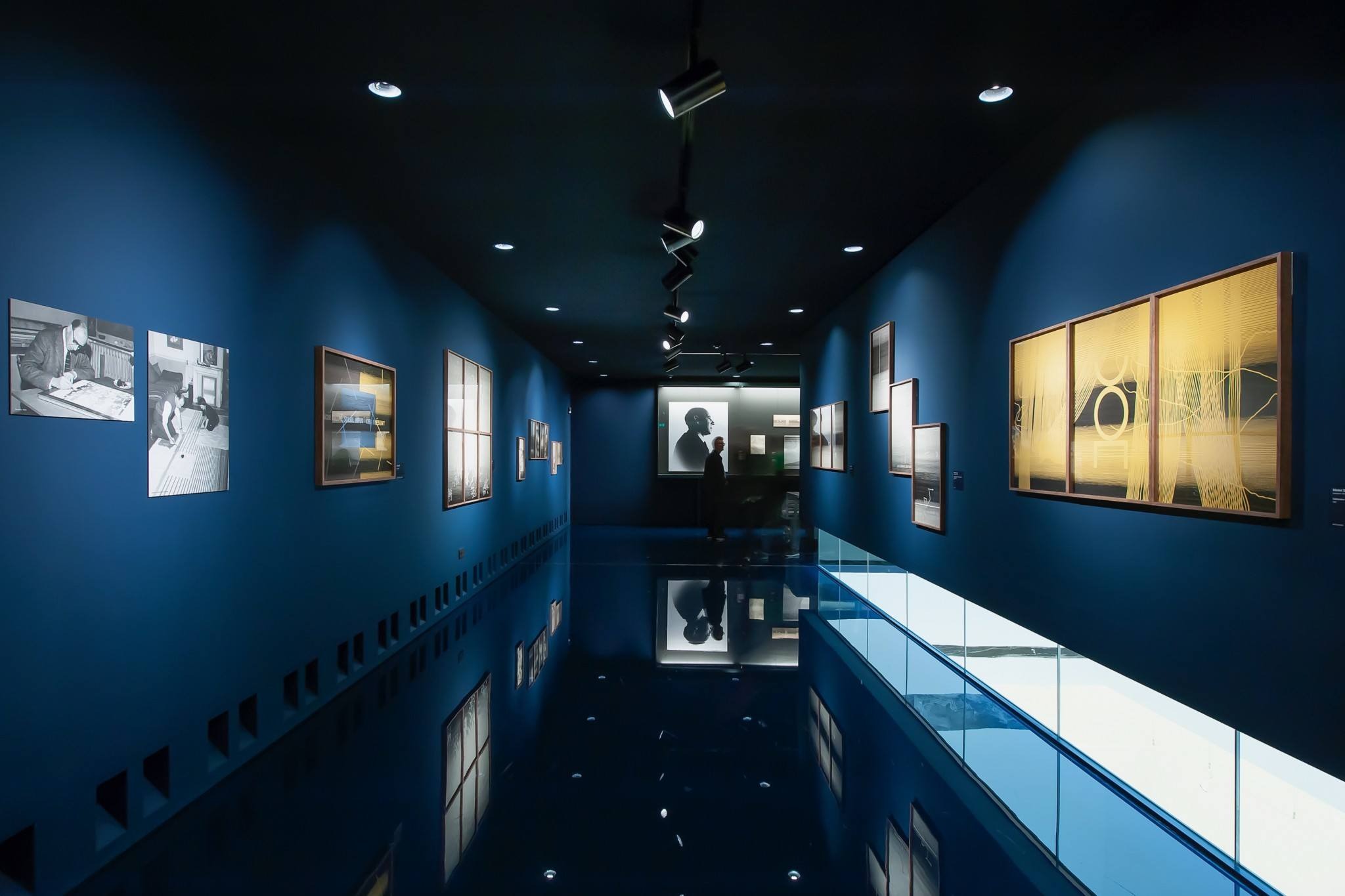

The result is a ceiling that reads as clean and uninterrupted. Modules can be repositioned anywhere along the track in seconds without tools, which makes the system uniquely suited to retail displays, hospitality interiors, and residential spaces where lighting needs change over time.

Concealed vs Surface-Mounted vs Suspended: A Direct Comparison

How the DC48V Low-Voltage System Works

The track profile houses two or more copper conductors running its full length, energised at DC 48V by an external driver. When a magnetic LED module is placed anywhere along the track, its built-in contacts touch the conductors and complete the circuit immediately — no wiring, no clips, no screwdriver. The 48V DC bus is the industry standard because it sits below the 60V safety threshold defined in IEC standards, allowing direct contact without shock risk, while still delivering enough voltage for high-power modules over long track runs without significant voltage drop.

What Makes a True Trimless Mud-In Installation Different

Not all concealed magnetic track products are truly trimless. A genuine trimless system uses a perforated wing profile that integrates into the plasterboard and is skim-coated flush during installation. The edge of the opening becomes part of the ceiling.

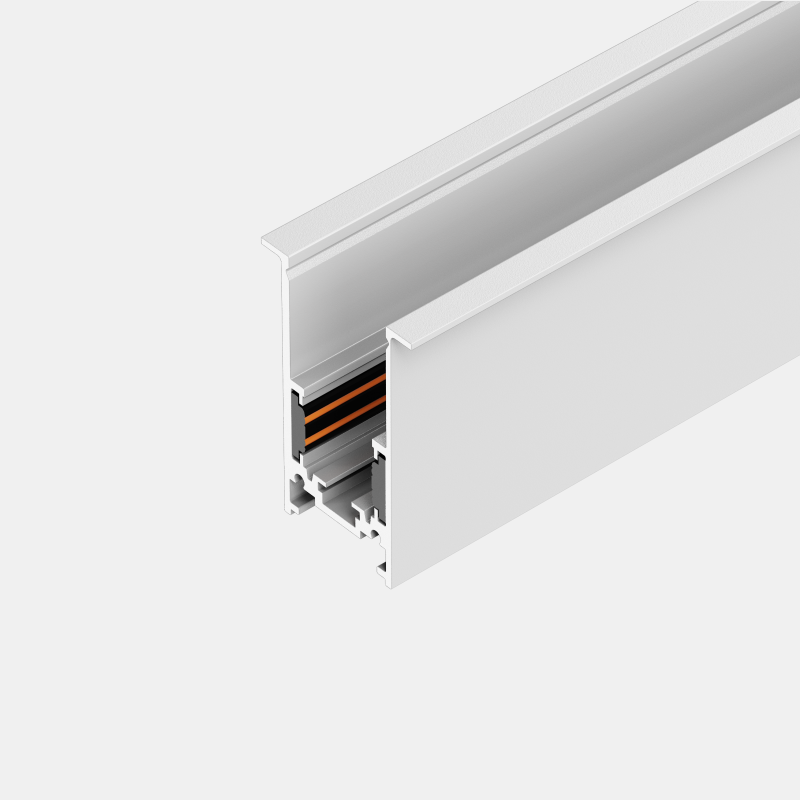

A trimmed recessed track, by contrast, sits inside the ceiling with a slim visible frame at the opening edge. On projects where the ceiling already features shadow gaps, expressed reveals or structured junctions, that frame reads as a deliberate architectural detail rather than an afterthought, and installation is faster, more forgiving, and require less plastering skill.

Is Concealed Magnetic Track Lighting Worth It? Honest Pros and Cons

The honest answer depends on the project type, budget, and ceiling construction. Here is a direct assessment, not a marketing pitch.

Five Genuine Advantages Worth Paying For

1. Flexibility without disruption. Repositioning a spotlight takes 3 seconds. Replacing a recessed downlight takes 45 minutes and leaves a hole in your ceiling.
2. Clean ceiling plane. In spaces where architecture is the product — a high-end hotel lobby, a luxury boutique — a visually uninterrupted ceiling has real value that clients will pay for.
3. Future-proof layout. When a retail tenant rebrands and relocates fixtures, no ceiling work is required. The track stays; only the modules move.
4. Dimming and control integration. DALI, Zigbee and Bluetooth compatibility means the same system works with premium home automation and building management systems.
5. Reduced maintenance cost over time. LED modules typically last 50,000 hours. When one fails, a non-specialist can swap it in seconds — no electrician required on-site.

Three Real Limitations to Acknowledge

Second, the upfront cost is meaningfully higher than surface-mounted alternatives — typically 30 to 60 percent more for the track and installation labour combined. The economic case rests on long-term flexibility and reduced maintenance, not short-term savings.

Third, the system requires careful coordination between the lighting designer, the contractor and the ceiling installer. Poor coordination at the rough-in stage — even a 10 mm error in track positioning — can result in modules sitting visibly off-centre relative to the furniture below.

Which Projects Should and Should Not Specify Concealed Magnetic Track

System Components: What You Are Actually Buying

Track Profile: 46 mm Standard vs 31 mm Standard vs 5 mm Ultra-Slim

DC48V Power Drivers: Internal vs External

External drivers — mounted in the ceiling void or a services cabinet — are the standard choice for commercial projects. They are easier to access for maintenance, available in higher wattage versions (up to 768W), and compatible with DALI and 0-10V dimming protocols. Quality matters here: a reputable driver brand such as Meanwell, Tridonic or Osram will outlast the track itself. Avoid generic drivers sourced purely on price — driver failure is the most common reason for early magnetic track system failure in the field.

Integrated drivers are available for residential and small commercial applications where ceiling access is limited. They typically cap out at 100W and offer fewer dimming protocol options, but reduce installation complexity.

Magnetic LED Modules: Spotlights, Linears and Adjustable Heads

Planning Your Installation: The Numbers That Matter

Ceiling Depth: How Much Space Do You Actually Need

The minimum ceiling void depth for a standard 31 mm concealed magnetic track installation is 100 to 120 mm, measured from the finished ceiling surface to the structural slab or joist above. This accounts for the track profile height (typically 54 to 60 mm), the driver housing or junction box (add 30 to 40 mm), and a minimum 10 mm clearance for thermal management. For 31 mm ultra-slim profiles with external drivers mounted remotely, 80 mm is achievable but tight. Confirm your void depth on-site before committing to product selection.

Calculating Driver Capacity: A Simple Formula

Always size your driver at a minimum 20 percent above the total connected load. Running a driver at 100 percent of its rated capacity reduces its lifespan significantly — the thermal stress at maximum load is the primary cause of premature driver failure. For a circuit with 20 modules at 10W each, the minimum driver rating is 240W, not 200W.

For longer track runs — typically anything over 8 metres for a 31 mm system or 12 metres for a 35 mm system — divide the circuit into two independently driven segments and feed from the midpoint of each segment rather than one end, to keep voltage drop below 3 percent across the full length.

Colour Temperature and Lumen Recommendations by Space

Step-by-Step Installation Guide

Concealed magnetic track installation is a multi-trade operation that spans the rough-in, plastering, electrical first-fix, and finishing stages. Coordination between the ceiling installer and the electrician is critical. The following sequence applies to a new-build or full-renovation project with a suspended plasterboard ceiling.

1. 1
   Mark and cut the ceiling opening

   Use a laser level to mark the track centreline across the ceiling plane. Cut to the exact profile manufacturer dimensions — typically within ±1 mm. Oversized cutouts lead to cracking and visible shadow lines at the plaster edge.

2. 2
   Fix the track profile and run electrical supply cable

   Screw the track profile to the ceiling framing through the perforated wings at the spacing specified by the manufacturer (typically 400 to 600 mm centres). Run the DC supply cable to the driver location before closing the ceiling void.

3. 3
   Apply joint compound and finish flush

   Apply joint tape over the perforated wings, then skim coat the entire ceiling surface. The track slot should remain completely clear of compound — use masking tape inside the slot during this stage and remove before painting. Sand the surface to a smooth finish level with the track face.

4. 4
   Wire and commission the DC driver

   Connect the positive and negative conductors according to the wiring diagram. Commission the DALI or dimming address before the ceiling void is permanently closed. Test the full track length with a dummy load before installing modules.

5. 5
   Snap modules into position and test

   Clean the conductor surface with a dry cloth before inserting modules. Align module contacts with the track conductors, press firmly until the magnetic hold engages, then power on and verify output. Adjust beam angles and dimmer levels before handover.

The Five Most Common Installation Mistakes

1. Oversized cutout. Even 3 to 4 mm over specification causes cracking at the plaster edge within months due to seasonal movement.
2.  Driver running at 100 percent load. Always apply the 1.2× safety factor. A correctly sized driver at 80 percent load will outlast the building fitout.
3. Conductor surface contamination. Plaster dust, paint or oils on the copper contacts prevent reliable electrical contact. Clean before module installation.
4. Mixing incompatible module brands. Magnetic track systems are not universally cross-compatible. Connector geometry and voltage tolerances vary. Confirm compatibility in writing with your supplier before mixing brands.
5. No mid-point injection on long runs. Voltage drop over 8 m on a 31 mm track causes dimming inconsistency between near and far modules. Always inject from the midpoint on runs over 6 m.

Application Scenarios: Matching the System to the Space

Luxury Residential: Living Rooms, Kitchens and Master Suites

In a residential project, the concealed recessed magnetic track is most effective when the furniture layout is known at specification time. In a living room with a fixed sofa grouping and artwork positions, a U-shaped track allows accent, ambient and task lighting zones to be served by a single system. In a kitchen, a straight I-track over the island counter with three to four adjustable spotlights delivers high-quality task lighting at 2700K that can be dimmed to ambient level for dining.

Commercial Retail and Showroom Display

Retail is where the economic case for recessed magnetic track is strongest. When a fashion boutique reseasons its collection every 8 to 12 weeks, the cost of repositioning conventional recessed downlights — electrician time, patching, repainting — adds up significantly over a standard 5-year lease. With a magnetic track system, the same repositioning takes under 10 minutes and requires no tradespeople. Over a typical retail lease, the payback period on the premium over surface-mounted alternatives is 18 to 36 months.

For jewellery and watch retail, specify CRI 97 or above modules at 3000K. The colour rendering difference between CRI 80 and CRI 97 on precious metals and gemstones is visible to the naked eye and directly affects sales conversion.

Hotels, Restaurants and Hospitality Interiors

Hospitality is the highest-value application for concealed magnetic track lighting. Guests in a hotel room or restaurant experience the quality of the lighting directly, even when they cannot articulate why the space feels better than average. The trimless ceiling reinforces the overall architecture. DALI zone control — dining, bar, circulation — allows the property to run different scenes at different times of day without manual adjustment.

Office and Open-Plan Workspace

In a commercial office context, the primary advantage of a recessed magnetic track is the ability to adapt the lighting layout when teams reorganise or floors are retenanted. Specify glare-free linear modules at 4000K to meet the UGR 19 or lower requirement for display screen equipment workstations. Zigbee or DALI 2 integration with occupancy sensors enables energy use reduction without separate wiring infrastructure.

Buying Guide: How to Evaluate Suppliers and Avoid Common Pitfalls

Certifications That Matter by Market

Ten Questions to Ask Before Placing an Order

1. 1
   Are your modules cross-compatible with other brands?

   Get the answer in writing. If they are not, understand the implications for long-term spare parts supply.

2. 2
   What is the minimum ceiling void depth for your 46 mm, 31 mm and 5 mm profiles?

   Exact numbers, not ranges. Verify against your project drawings.

3. 3
   Can you provide third-party LM-80 or TM-21 photometric data?

   Self-declared lumen values are not reliable. Ask for IES files and test lab certificates.

4. 4
   What is the warranty period for the track, driver and modules separately?

   Track and driver warranty should be a minimum of 3 to 5 years. Module warranty 2 to 3 years.

5. 5
   How long will you guarantee spare module availability?

   For a 10-year project, modules need to be available for at least 7 to 10 years post-installation.

Why Prices Vary So Much: A Cost Breakdown

The price range for concealed magnetic track systems is wide — from budget-tier products at USD 15 to 25 per metre of track up to premium European-engineered systems at USD 80 to 150 per metre, before modules. The difference is not purely margin. Key cost drivers include aluminium extrusion wall thickness (affects structural rigidity and heat dissipation), copper conductor cross-section (affects current capacity and voltage drop), the quality of the LED chip and driver components, and the cost of independent third-party certification.

For commercial and hospitality projects where warranty claims and contractor liability are real concerns, the premium for a certified product with documented photometric performance is generally justified. For residential owner-occupied projects with moderate usage, a mid-tier product with CE certification and a reputable LED chip brand is a reasonable compromise.
