MLL3007 110° Magnetic Track Linear Flood Light 7W/10W

MLL3007
Quick info
CCT: 2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI: CRI90+, CRI97+
Full Beam Angle: 110°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux: 100Lm/W
Protection: IP20
Warranty: 3 years
Contact Now
add to cart

Description

The SMLL3007 is a 24/48V magnetic track linear flood light delivering >100 lm/W efficacy with 7W or 10W output and a wide 110° beam angle. Its 294x22x43mm aluminum profile integrates seamlessly into standard V4 magnetic tracks while offering a key customization: the aluminum housing can be manufactured into curved configurations specifically designed for the Curve Magnetic Track Light V6 system. Boasting an exceptional CRI>97 with R9≥90 and SDCM<3, it ensures superior color rendering. Supporting DALI, ZigBee, and Triac dimming with a flicker-free 16KHz driver, it provides precise, adjustable ambient illumination for high-end commercial, retail, and hospitality projects.

Key Feature

Customizable Bending for Curve Track V6 Compatibility: Beyond standard V4 straight rails, the 180mm aluminum housing can be specially customized to match the exact curvature of the Curve Magnetic Track Light V6 system, allowing flawless integration into arched ceiling designs, circular rings, and complex curved lighting layouts.

Ultra-Wide 110° Wash for Uniform Space Lighting: Offering a wide 110° beam angle and high luminous efficacy of >100 Lm/W with 7W/10W power options, this linear module provides soft, even, and energy-efficient ambient illumination across expansive office spaces, retail aisles, and hotel corridors.

High Luminous Efficiency >100lm/W: Delivering 7W and 10W power options with >100lm/W efficiency, this fixture ensures exceptional energy savings while maintaining high brightness, significantly lowering operational electricity costs for large-scale commercial environments.

Smart Multi-Protocol Dimming & Flicker-Free Stability: Fully supporting Triac, 0-10V, DALI, ZigBee, Bluetooth, and PLC dimming, this fixture integrates seamlessly into smart building controls. The advanced 16KHz driver eliminates flicker entirely, protecting occupants' visual comfort in high-traffic commercial spaces.

Contact us for project pricing or OEM samples.

Specification

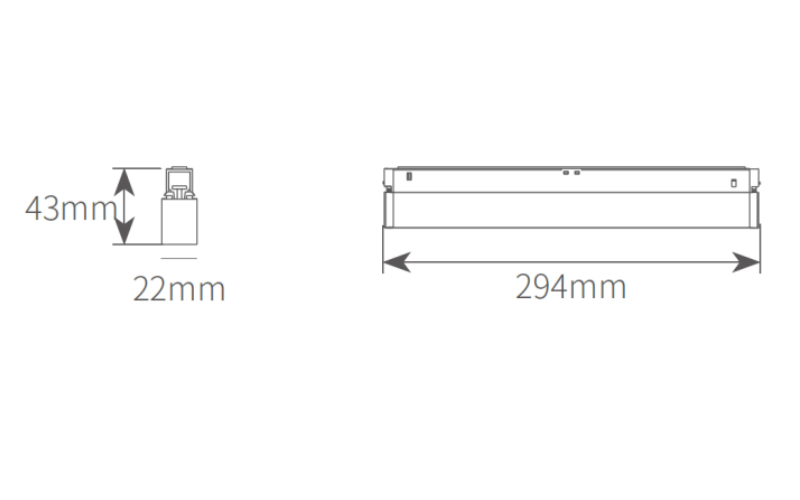

MLL3007 110° Magnetic Track Linear Flood Light 7W/10WSize and drawing
Product codeMLL3007
Power7W/10W
Voltage24VDC, 48VDC
CCT2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K
SizeL294xW22xH43mm
Color toleranceSDCM<3
Beam angle110°
Power factorPF>0.9
CRICRI90+, CRI97+Dimming control
DimmableDALI, Triac, 0-10V, Bluetooth, ZigbeeMoluce Lighting dimming control options including DALI, Triac, 0-10V, Bluetooth, and Zigbee protocols.
OpticsPPMA

Color AccuracyRf≥92
Color SaturationRg=99
Lumen outputLamp lumen 100Lm/WDownload
MaterialsDie cast AluminumDownload the technical specification file and photometric data for the AR02-4 architectural spotlight.
InstallationTrack Mounted
ProtectionIP20
FinishWhite/Black
Warranty3 years

Application Scenarios

Widely used in high-end commercial interiors such as international schools, corporate lobbies, luxury retail stores, art galleries, hotel reception areas, and exhibition centers.
