D55 Single-Beam 90º In-Ground LED Well Light
2055AS-1
Delivery:
EXW
Country of Origin:
GuangDong, China
Quickinfo
CCT: 2700K, 3000K, 4000K, 5000K, 6000K, R/G/B, RGB 3in1
CRI: CRI>80
Full Beam Angle: 90°
Dimmable: DALI, TRIAC, 1-10V, PWM, DMX512 Dimming
Luminous Flux: 10 - 15 Lm
Protection: IP67
Warranty: 3 years
CCT: 2700K, 3000K, 4000K, 5000K, 6000K, R/G/B, RGB 3in1
CRI: CRI>80
Full Beam Angle: 90°
Dimmable: DALI, TRIAC, 1-10V, PWM, DMX512 Dimming
Luminous Flux: 10 - 15 Lm
Protection: IP67
Warranty: 3 years
Description
Contact us for project pricing or OEM samples.
Specification

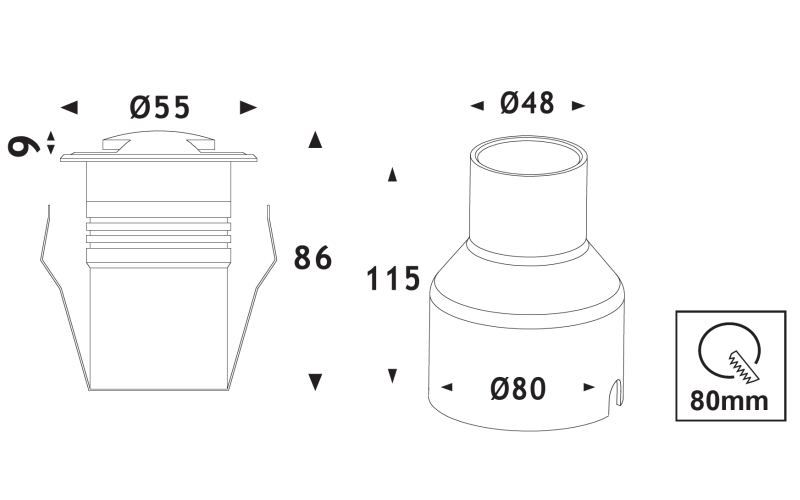

| D55 Single-Beam 90º In-Ground LED Well Light | Size and drawing | ||||||||||||
| Product code | 2055AS-1 |  | |||||||||||
| LED Chip | 1 x 2W | 1 x 2W | 1 x 3W | ||||||||||
| Work Power | 2W | 2W | 2.5W | ||||||||||
| Voltage | 12/24VDC | 120-240VAC | 12/24VDC | ||||||||||
| CCT | 2700-6000K, R/G/B | 2700-6000K, R/G/B | RGB 3in1 | ||||||||||
| Beam angle | 90° | ||||||||||||
| Lumen output | 15Lm | 15Lm | 10Lm | ||||||||||
| Power factor | PF>0.9 | ||||||||||||
| Dimmable | Triac / PWM /1-10V / Dali / DMX512 | Dimming control | |||||||||||
| Materials | Die-cast aluminum |  | |||||||||||
| Size | D55xH86mm | ||||||||||||
| Cut out | D80mm | ||||||||||||
| LED brand | OSRAM/CREE/EPISTAR | ||||||||||||
| CRI | >80 | Download | |||||||||||
| SDCM | <3 |  | |||||||||||
| Salt Spray | >800 Hours | ||||||||||||
| Protection | IP67 | ||||||||||||
| Finish | Sliver | ||||||||||||
| Warranty | 3 years | ||||||||||||
Application Scenarios
Widely used in: ground decorative lighting in urban squares, sculptures, garden communities, roads, parks, scenic spots, commercial pedestrian streets, parking lots and other places.
