RM7530 Architectural Zoomable Magnetic Track Spotlight 30W
RM7530
Quick info
CCT: 2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI: CRI>95
Full Beam Angle: 10°-55°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux: 80Lm/W
Protection: IP20
Warranty: 3 years
CCT: 2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI: CRI>95
Full Beam Angle: 10°-55°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux: 80Lm/W
Protection: IP20
Warranty: 3 years
Description
The RM7530 30W Architectural Zoomable Magnetic Track Light is the ultimate high-output fixture for the Moluce 24V/48V low-voltage curved magnetic system. Its standout feature is the advanced zoomable optical engine, which allows users to seamlessly adjust the beam angle from a tight 10° pinpoint accent to a broad 55° wide flood. Combined with a powerful 30W LED and an ultra-high CRI>95, this spotlight provides unmatched flexibility and color accuracy for illuminating large retail displays, museum artifacts, and high-ceiling commercial spaces.
Contact us for project pricing or OEM samples.
Specification

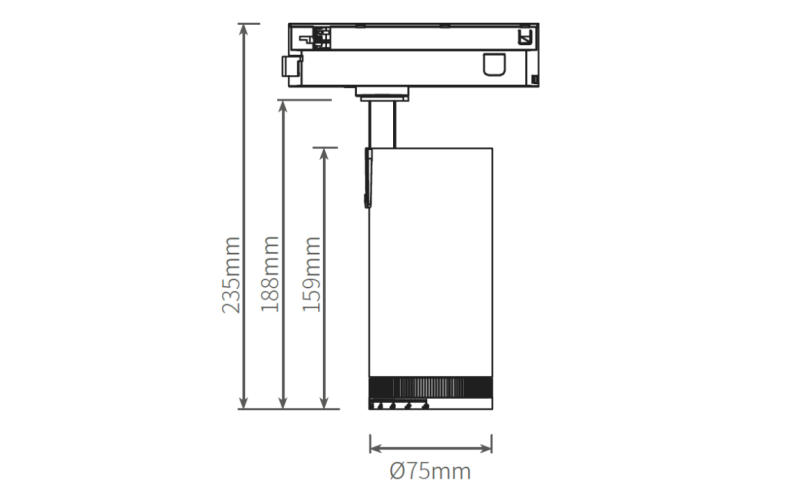

| RM7530 Architectural Zoomable Magnetic Track Spotlight 30W | Size and drawing | ||||||||||||
| Product code | RM7530 |  | |||||||||||
| Power | 30W | ||||||||||||
| Voltage | 24VDC, 48VDC | ||||||||||||
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K | ||||||||||||
| Size | D75xL159mm | ||||||||||||
| Color tolerance | SDCM＜3 | ||||||||||||
| Beam angle | 10°-55° | ||||||||||||
| Power factor | PF>0.9 | ||||||||||||
| CRI | CRI95+ | Dimming control | |||||||||||
| Dimmable | DALI, Triac, 0-10V, Bluetooth, Zigbee |  | |||||||||||
| Optics | Lens | ||||||||||||
| Color Accuracy | Rf≥92 | ||||||||||||
| Color Saturation | Rg=99 | ||||||||||||
| Lumen output | Lamp lumen 80lm/W | Download | |||||||||||
| Materials | Die cast Aluminum |  | |||||||||||
| Installation | Track Mounted | ||||||||||||
| Protection | IP20 | ||||||||||||
| Finish | Black/White | ||||||||||||
| Warranty | 3 years | ||||||||||||
Application Scenarios
Widely used in high-end commercial interiors such as international schools, corporate lobbies, luxury retail stores, art galleries, hotel reception areas, and exhibition centers.
