SMLL6015 574mm Linear Magnetic Flood Light 15W

SMLL6015

Quick info
CCT: 2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI: CRI90+, CRI97+
Full Beam Angle: 110°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux: 100Lm/W
Protection: IP20
Warranty: 3 years

Contact Now

add to cart

Description

The SMLL6015 15W 574mm linear magnetic track light delivers versatile coverage for mid-sized commercial display walls and high-end gallery spaces. Its 574mm aluminum profile provides a balanced wash of light, achieving uniform illumination across merchandise racks without dark spots. Operating on a 24/48V low-voltage track with >100Lm/W efficiency, this fixture offers a wide 110-degree beam and exceptional CRI>97 for brilliant visual presentations.

Contact us for project pricing or OEM samples.

Specification

SMLL6015 574mm Linear Magnetic Flood Light 15W

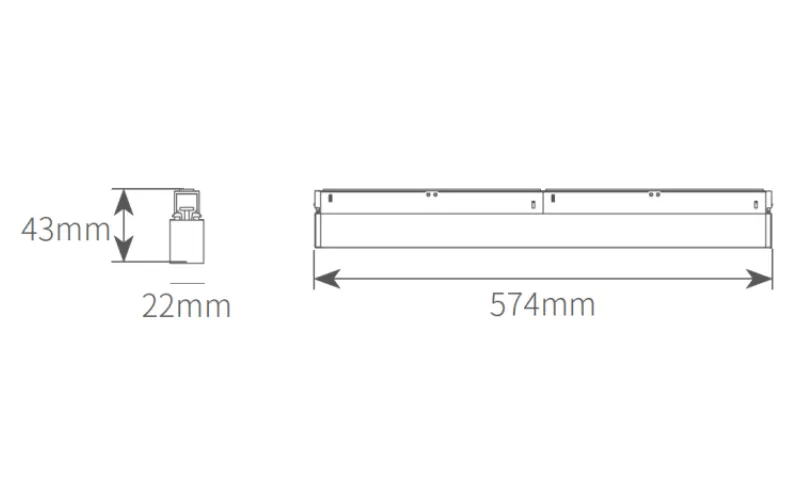

Size and drawing

Product code

SMLL6015

Power

15W

Voltage

24VDC, 48VDC

CCT

2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K

Size

L574*W22*H43mm

Color tolerance

SDCM＜3

Beam angle

110°

Power factor

PF>0.9

CRI

CRI90+, CRI97+

Dimming control

Dimmable

DALI, Triac, 0-10V, Bluetooth, Zigbee

Moluce Lighting dimming control options including DALI, Triac, 0-10V, Bluetooth, and Zigbee protocols.

Optics

PMMA

Color Accuracy

Rf≥92

Color Saturation

Rg=99

Lumen output

Lamp lumen 100Lm/W

Download

Materials

Die cast Aluminum

Download the technical specification file and photometric data for the AR02-4 architectural spotlight.

Installation

Track Mounted

Protection

IP20

Finish

White / Black (Customizable)

Warranty

3 years

Application Scenarios

Widely used in high-end commercial interiors such as international schools, corporate lobbies, luxury retail stores, art galleries, hotel reception areas, and exhibition centers.
