SMLS0612 154mm High Output Compact Grille Light 6-10W

SMLS0612

Quick info
CCT: 2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI: CRI90+, CRI97+
Full Beam Angle: Single CCT: 15°/30°/45° Tunable white: 24°/36°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux: 80Lm/W
Protection: IP20
Warranty: 3 years

Contact Now

add to cart

Description

The SMLS0612 6-10W high output compact magnetic grille light packs a powerful 10W punch into a mere 154mm footprint. It is specifically designed for small commercial islands and narrow tabletop displays where high brightness is required but space is strictly limited. Providing precise 24 and 36-degree selectable beams and >80Lm/W efficacy, this highly efficient 24/48V fixture delivers intense, focused illumination on compact product stands while maintaining a professional, non-intrusive 22mm ultra-slim profile.

Specification

SMLS0612 154mm High Output Compact Grille Light 6-10W

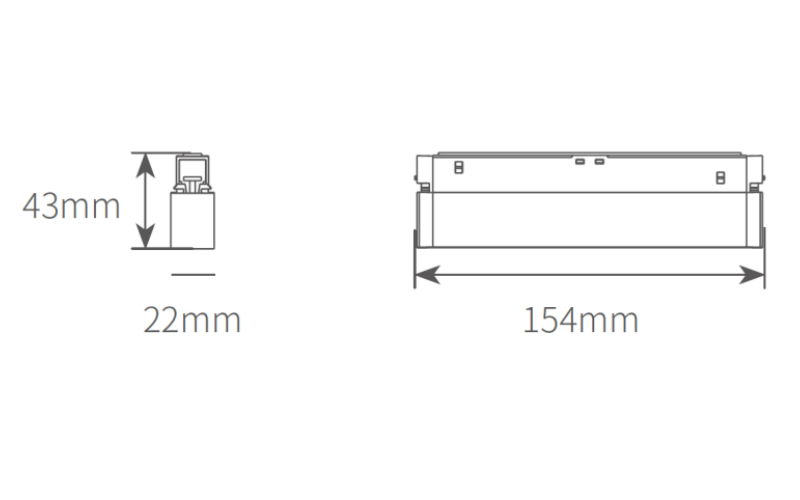

Size and drawing

Product code

SMLS0612

Power

6W/10W

Voltage

24VDC/48VDC

CCT

2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K

Size

L154*W22*H43mm

Color tolerance

SDCM＜3

Beam angle

Single CCT: 15°/30°/45° Tunable white: 24°/36°

Power factor

PF>0.9

CRI

CRI90+, CRI97+

Dimming control

Dimmable

ON/OFF, DALI, Triac, 0-10V, Bluetooth, Zigbee

Moluce Lighting dimming control options including DALI, Triac, 0-10V, Bluetooth, and Zigbee protocols.

Optics

Reflector

Color Accuracy

Rf≥92

Color Saturation

Rg=99

Lumen output

Lamp lumen 80Lm/W

Download

Materials

Die cast Aluminum

Download the technical specification file and photometric data for the AR02-4 architectural spotlight.

Installation

Track Mounted

Protection

IP20

Finish

White / Black (Customizable)

Warranty

3 years

Application Scenarios

Widely used in high-end commercial interiors such as international schools, corporate lobbies, luxury retail stores, art galleries, hotel reception areas, and exhibition centers.
