602mm Commercial Ceiling Light
12W Magnetic Wash Light
602mm Commercial Ceiling Light
602mm Commercial Ceiling Light

SMLT6012 602mm Linear Magnetic Track Light 12W

SMLT6012
Quick info
CCT: 2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI: CRI90+
Full Beam Angle: 120°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux: 80Lm/W
Protection: IP20
Warranty: 3 years
Contact Now
add to cart

Description

The SMLT6012 12W linear magnetic track light is a high-output fixture designed to cover expansive commercial spaces, such as exhibition halls and large retail stores. At 602mm long and operating on a 48V low-voltage track, it delivers a powerful wide 120-degree beam with high efficacy of >80lm/W. With a superior CRI>90, Rf≥92, and Rg≥99, it ensures vibrant natural colors across broad wall surfaces and product displays. Its extended length allows for continuous, seamless wash lighting with minimal fixture gaps.

Specification

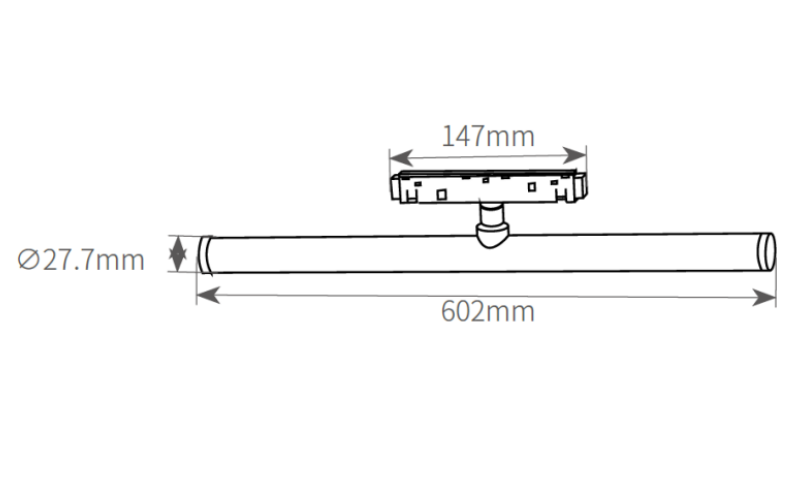

SMLT6012 602mm Linear Magnetic Track Light 12WSize and drawing
Product codeSMLT6012
Power12W
Voltage24VDC, 48VDC
CCT2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K
SizeD27.7*L602mm
Color toleranceSDCM<3
Beam angle120°
Power factorPF>0.9
CRICRI90+Dimming control
DimmableDALI, Triac, 0-10V, Bluetooth, ZigbeeMoluce Lighting dimming control options including DALI, Triac, 0-10V, Bluetooth, and Zigbee protocols.
OpticsLens

Color AccuracyRf≥92
Color SaturationRg=99
Lumen outputLamp lumen 80Lm/WDownload
MaterialsDie cast AluminumDownload the technical specification file and photometric data for the AR02-4 architectural spotlight.
InstallationTrack Mounted
ProtectionIP20
FinishWhite / Black (Customizable)
Warranty3 years

Application Scenarios

Widely used in high-end commercial interiors such as international schools, corporate lobbies, luxury retail stores, art galleries, hotel reception areas, and exhibition centers.
