SMP403008 H300mm Smart Dimmable Magnetic Cylinder Track Light 8W

SMP403008

Quick info
CCT: 2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI: CRI90+, CRI97+
Full Beam Angle: 15°/30°/36°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux: 100Lm/W
Protection: IP20
Warranty: 3 years

Contact Now

add to cart

Description

The SMP403008 8W smart dimmable magnetic cylinder pendant is meticulously engineered for sophisticated smart home systems and luxury boutique hotels. Operating on safe 24V/48V low-voltage magnetic tracks, it fully supports advanced protocols including Triac, DALI, 0-10V, ZigBee, and Bluetooth. With its modern 40mm diameter, 300mm sleek profile, and availability in 7 colors, this fixture allows designers to tailor precise ambient or accent lighting through intelligent building control systems for high-end residential projects.

Specification

SMP403008 H300mm Smart Dimmable Magnetic Cylinder Track Light 8W

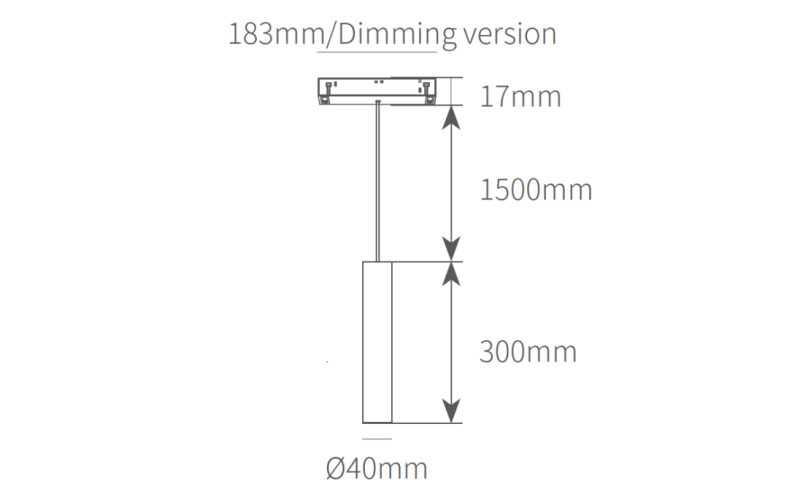

Size and drawing

Product code

SMP403008

Power

8W

Voltage

24VDC, 48VDC

CCT

2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K

Size

D40*H300mm

Color tolerance

SDCM＜3

Beam angle

15°/30°/36°

Power factor

PF>0.9

CRI

CRI90+, CRI97+

Dimming control

Dimmable

DALI, Triac, 0-10V, Bluetooth, Zigbee

Moluce Lighting dimming control options including DALI, Triac, 0-10V, Bluetooth, and Zigbee protocols.

Optics

Lens

Color Accuracy

Rf≥92

Color Saturation

Rg=99

Lumen output

Lamp lumen 100Lm/W

Download

Materials

Die cast Aluminum

Download the technical specification file and photometric data for the AR02-4 architectural spotlight.

Installation

Track Mounted

Protection

IP20

Finish

White/Black/Brown/Grey/Green/Red/Blue(Customizable)

Warranty

3 years

Application Scenarios

Widely used in high-end commercial interiors such as international schools, corporate lobbies, luxury retail stores, art galleries, hotel reception areas, and exhibition centers.
