SMP405015F Architectural Adjustable Track Pendant 15W
SMP405015F
Quick info
CCT: 2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI: CRI90+, CRI97+
Full Beam Angle: 15°-36°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux: 70Lm/W
Protection: IP20
Warranty: 3 years
CCT: 2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI: CRI90+, CRI97+
Full Beam Angle: 15°-36°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux: 70Lm/W
Protection: IP20
Warranty: 3 years
Description
The SMP405015F 15W architectural magnetic zoom pendant is engineered for premium commercial spaces and luxury home interiors. The 500mm sleek cylinder provides a modern aesthetic, while the precision 15°-36° adjustable beam angle ensures dynamic lighting flexibility. Seamlessly integrating with DALI, ZigBee, and Bluetooth control systems, it allows for tailored scene setting on a 24V/48V low-voltage track. Its superior CRI>97 and Rf≥92 guarantee that premium materials, artworks, and fine dining environments are displayed with impeccable color accuracy and depth.
Specification

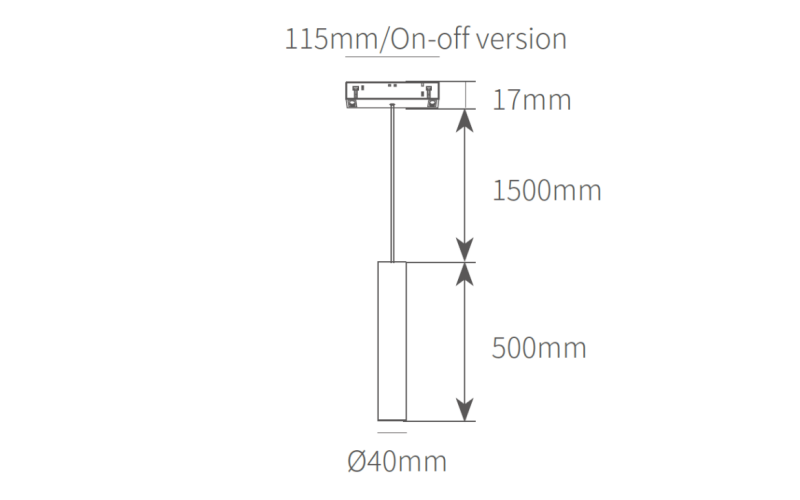

| SMP405015F Architectural Adjustable Track Pendant 15W | Size and drawing | ||||||||||||
| Product code | SMP405015F |  | |||||||||||
| Power | 15W | ||||||||||||
| Voltage | 24VDC, 48VDC | ||||||||||||
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K | ||||||||||||
| Size | D40*H500mm | ||||||||||||
| Color tolerance | SDCM＜3 | ||||||||||||
| Beam angle | 15°-36° | ||||||||||||
| Power factor | PF>0.9 | ||||||||||||
| CRI | CRI90+, CRI97+ | Dimming control | |||||||||||
| Dimmable | DALI, Triac, 0-10V, Bluetooth, Zigbee |  | |||||||||||
| Optics | PPMA | ||||||||||||
| Color Accuracy | Rf≥92 | ||||||||||||
| Color Saturation | Rg=99 | ||||||||||||
| Lumen output | Lamp lumen 70Lm/W | Download | |||||||||||
| Materials | Die cast Aluminum |  | |||||||||||
| Installation | Track Mounted | ||||||||||||
| Protection | IP20 | ||||||||||||
| Finish | Black/White | ||||||||||||
| Warranty | 3 years | ||||||||||||
Application Scenarios
Widely used in high-end commercial interiors such as international schools, corporate lobbies, luxury retail stores, art galleries, hotel reception areas, and exhibition centers.
