SMS4008F High Output Magnetic Track Zoom Light 5-8W

SMS4008F

Quick info
CCT: 2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI: CRI90+, CRI97+
Full Beam Angle: 15°-36° zoomable
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux: 75Lm/W
Protection: IP20
Warranty: 3 years

Contact Now

add to cart

Description

The SMS4008F 5-8W high output magnetic track zoom light delivers superior brightness for large-scale commercial applications, such as exhibition halls and high-end retail centers. Operating on a robust 24/48V platform, it provides a versatile 15 to 36-degree adjustable beam to precisely illuminate expansive product displays and architectural features. With an outstanding CRI>97, Rf≥92, and Rg≥99, it ensures vivid, accurate color presentation across premium retail environments.

Specification

SMS4008F High Output Magnetic Track Zoom Light 5-8W

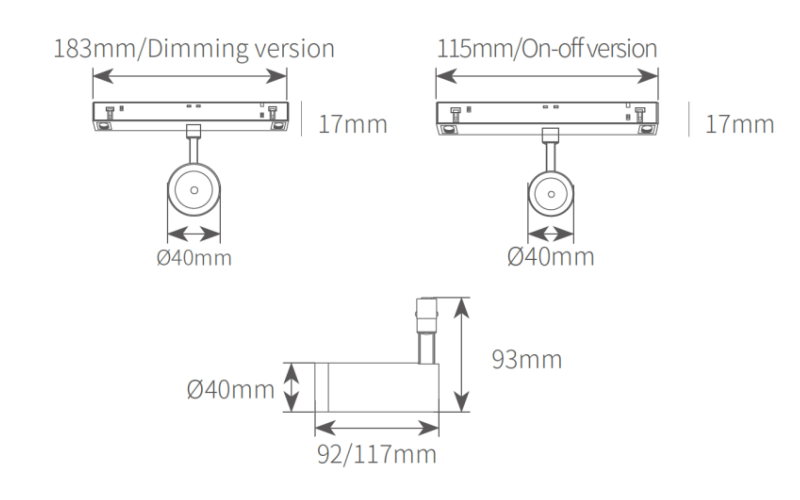

Size and drawing

Product code

SMS4008F

Power

5W/8W

Voltage

24VDC, 48VDC

CCT

2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K

Size

D40*117mm

Color tolerance

SDCM＜3

Beam angle

15°-36° zoomable

Power factor

PF>0.9

CRI

CRI90+, CRI97+

Dimming control

Dimmable

DALI, Triac, 0-10V, Bluetooth, Zigbee

Moluce Lighting dimming control options including DALI, Triac, 0-10V, Bluetooth, and Zigbee protocols.

Optics

Lens

Color Accuracy

Rf≥92

Color Saturation

Rg=99

Lumen output

Lamp lumen 75Lm/W

Download

Materials

Die cast Aluminum

Download the technical specification file and photometric data for the AR02-4 architectural spotlight.

Installation

Track Mounted

Protection

IP20

Finish

White / Black (Customizable)

Warranty

3 years

Application Scenarios

Widely used in high-end commercial interiors such as international schools, corporate lobbies, luxury retail stores, art galleries, hotel reception areas, and exhibition centers.
