SMS86 High Output Magnetic Track Spotlight 15-30W

SMS86

Quick info
CCT: 2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI: CRI90+, CRI95+
Full Beam Angle: 15°/24°/36°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux: 100Lm/W
Protection: IP20
Warranty: 3 years

Contact Now

add to cart

Description

The SMS86 high output magnetic track spotlight delivers flexible power options ranging from 15W to 30W, making it a versatile powerhouse for demanding commercial environments. With an impressive luminous efficacy of >100lm/W and a high CRI90, it provides brilliant, energy-efficient illumination for retail showrooms and hotel corridors. Available with adjustable 15-degree, 24-degree, or 36-degree beam angles, this 24/48V low-voltage magnetic track fixture allows lighting designers to tailor the light spread precisely to merchandise displays or architectural features.

Specification

SMS86 High Output Magnetic Track Spotlight 15-30W

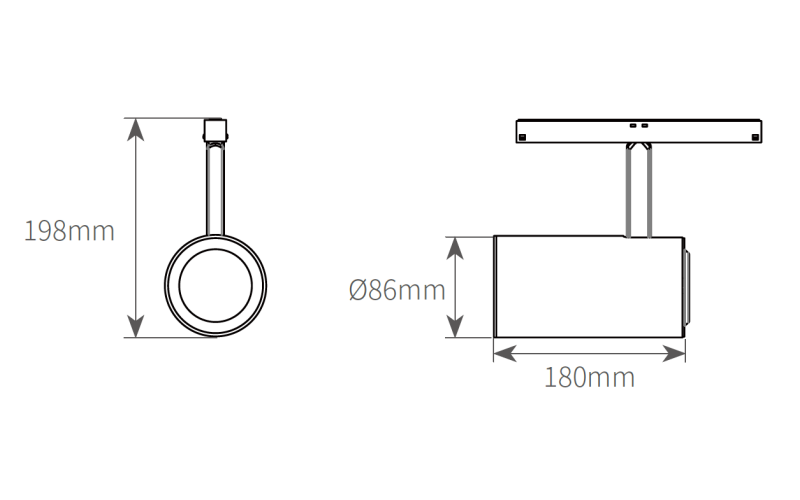

Size and drawing

Product code

SMS86

Power

15W/20W/25W/30W

Voltage

24VDC, 48VDC

CCT

2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K

Size

D86*180mm

Color tolerance

SDCM＜3

Beam angle

15°/24°/36°

Power factor

PF>0.9

CRI

CRI90+, CRI95+

Dimming control

Dimmable

DALI, Triac, 0-10V, Bluetooth, Zigbee

Moluce Lighting dimming control options including DALI, Triac, 0-10V, Bluetooth, and Zigbee protocols.

Optics

Reflector / Lens

Color Accuracy

Rf≥92

Color Saturation

Rg=99

Lumen output

Lamp lumen 100Lm/W

Download

Materials

Die cast Aluminum

Download the technical specification file and photometric data for the AR02-4 architectural spotlight.

Installation

Track Mounted

Protection

IP20

Finish

White / Black / Chrome / Brushed copper(Customizable)

Warranty

3 years

Application Scenarios

Widely used in high-end commercial interiors such as international schools, corporate lobbies, luxury retail stores, art galleries, hotel reception areas, and exhibition centers.
