SMWR3010 Commercial Smart Dimmable Track Sconce 10W
SMWR3010
Quick info
CCT: 2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI: CRI95+
Full Beam Angle: 360°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux: 80Lm/W
Protection: IP20
Warranty: 3 years
CCT: 2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI: CRI95+
Full Beam Angle: 360°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux: 80Lm/W
Protection: IP20
Warranty: 3 years
Description
The SMWR3010 10W Commercial Smart Dimmable Track Light is a premium architectural fixture built for demanding retail displays and hospitality environments. Featuring an expansive 360° luminous surface and CRI>95, it creates a vibrant and immersive lighting experience on a 24V/48V magnetic track platform. Fully supporting multi-protocol controls including DALI, 0-10V, Triac, ZigBee, and Bluetooth, it seamlessly integrates into building management systems. Combined with wide tunable CCT options (1800K-6500K), it allows designers to create highly precise, mood-responsive scenes for upscale commercial spaces and luxury brand exhibitions.
Specification

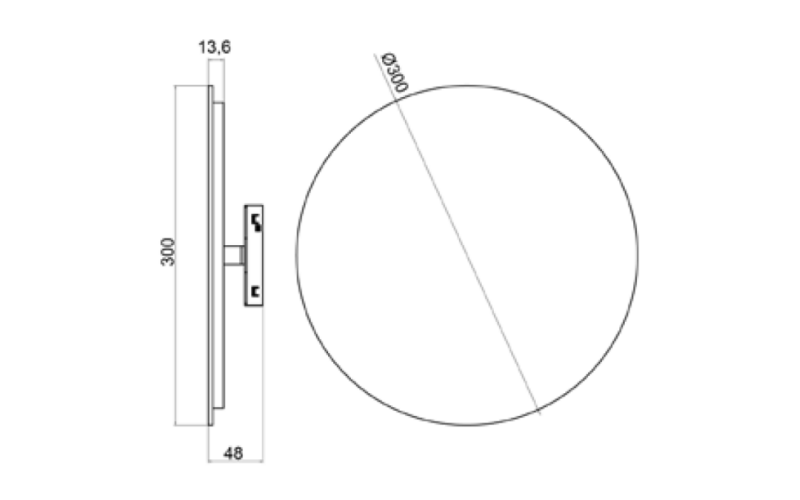

| SMWR3010 Commercial Smart Dimmable Track Sconce 10W | Size and drawing | ||||||||||||
| Product code | SMWR3010 |  | |||||||||||
| Power | 10W | ||||||||||||
| Voltage | 24VDC, 48VDC | ||||||||||||
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K | ||||||||||||
| Size | D300*H48mm | ||||||||||||
| Color tolerance | SDCM＜3 | ||||||||||||
| Beam angle | 360° | ||||||||||||
| Power factor | PF>0.9 | ||||||||||||
| CRI | CRI95+ | Dimming control | |||||||||||
| Dimmable | DALI, Triac, 0-10V, Bluetooth, Zigbee |  | |||||||||||
| Optics | PPMA | ||||||||||||
| Color Accuracy | Rf≥92 | ||||||||||||
| Color Saturation | Rg=99 | ||||||||||||
| Lumen output | Lamp lumen 80Lm/W | Download | |||||||||||
| Materials | Die cast Aluminum |  | |||||||||||
| Installation | Track Mounted | ||||||||||||
| Protection | IP20 | ||||||||||||
| Finish | White/Black/Brown/Grey/Green/Red/Blue | ||||||||||||
| Warranty | 3 years | ||||||||||||
Application Scenarios
Widely used in high-end commercial interiors such as international schools, corporate lobbies, luxury retail stores, art galleries, hotel reception areas, and exhibition centers.
